Product Details
Place of Origin: China
Brand Name: Qingdao Zaili Electric Power Equipment Co., Ltd.
Certification: CE,ISO
Model Number: Transmission Line Tower
Payment & Shipping Terms
Minimum Order Quantity: 1ton
Price: Need to inquiry
Packaging Details: Wooden case,Wooden crate,Bundle
Delivery Time: As agreed upon
Payment Terms: TT or L/C
Supply Ability: 100,000 tons per year
|
Product Name:
|
Transmission Line Tower
|
Type:
|
Angular Tower Or Steel Pole Tower
|
Material:
|
A36 / S235JR / Ст3пс、A572 Gr.50 / S355JR / 09Г2С、A572 Gr.65 / S420N / 15Г2СФ Or According To The Standards Provided By The Customer
|
Payment Terms:
|
TT Or L/C
|
Delivery Time:
|
As Agreed Upon
|
Galvanization Standard:
|
EN ISO 1461,ASTM/A123 Or Equivalent
|
Lifetime:
|
50 Years
|
Trade Terms:
|
EXW,FOB,FCA,CFR,CIF,DAP Etc.
|
|
Product Name:
|
Transmission Line Tower
|
|
Type:
|
Angular Tower Or Steel Pole Tower
|
|
Material:
|
A36 / S235JR / Ст3пс、A572 Gr.50 / S355JR / 09Г2С、A572 Gr.65 / S420N / 15Г2СФ Or According To The Standards Provided By The Customer
|
|
Payment Terms:
|
TT Or L/C
|
|
Delivery Time:
|
As Agreed Upon
|
|
Galvanization Standard:
|
EN ISO 1461,ASTM/A123 Or Equivalent
|
|
Lifetime:
|
50 Years
|
|
Trade Terms:
|
EXW,FOB,FCA,CFR,CIF,DAP Etc.
|
Custom Transmission Line Tower configurations including tension straight and spanning towers for high voltage electricity transmission

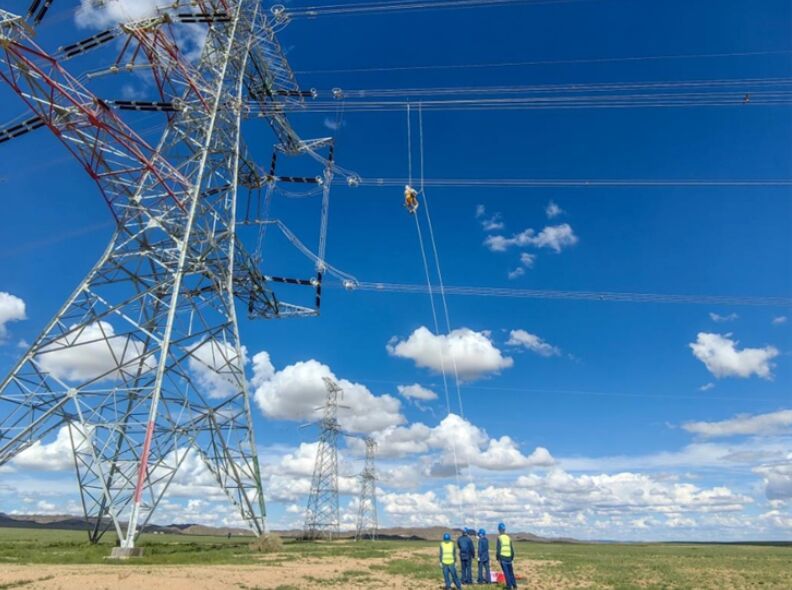

Transmission line towers are structures used to support high-voltage or ultra-high-voltage overhead transmission line conductors and lightning arresters. The structural types can be divided into wine glass type, cat head type, upper character type, etc. according to shape, and can be divided into tension towers, straight towers, spanning towers, etc.
Designer and manufacturer
Design standard: According to customer specific requirements; ASTM or BS standard
Material: Q355B or Q420B or according to customer requirements to meet ASTM or BS standards;
Type: Angle steel tower or steel pipe pole or mixed tower
Galvanizing method: hot-dip galvanizing;
Design Notice:
The safety distance requirements between the conductor and the ground and buildings must be met, and the specific structure must be determined based on factors such as voltage level and line layout
Loads on transmission lines:
Transmission line towers mainly bear wind loads, ice loads, line tension, constant loads, the weight of personnel and tools during installation or maintenance, as well as line breaks, earthquakes and other loads.
The size and spacing of the towers must meet the circuit requirements: the necessary minimum safety distance should be maintained between the conductors and the ground, buildings, trees, railways, roads, rivers and other overhead lines, between conductors and conductors, and between conductors and lightning conductors.
