Product Details
Place of Origin: China
Brand Name: Qingdao Zaili Electric Power Equipment Co., Ltd.
Certification: CE,ISO
Model Number: Telecommunication Towers
Payment & Shipping Terms
Minimum Order Quantity: 1ton
Price: Need to inquiry
Packaging Details: Wooden case,Wooden crate,Bundle
Delivery Time: As agreed upon
Payment Terms: TT or L/C
Supply Ability: 100,000 tons per year
|
Product Name:
|
Steel Communication Towers
|
Type:
|
Angular Steel Tower
|
Material:
|
A36 / S235JR/ CT3nC、A 572 Gr.50 / S355JR/ 09[ 2C、 A572 Gr.65 / S420N/ 15F2CΦ Or According To The Standards Provided By The Customer
|
Payment Terms:
|
TT Or L/C
|
Delivery Time:
|
As Agreed Upon
|
Galvanization Standard:
|
EN ISO 1461,ASTM/A123 Or Equivalent
|
Lifetime:
|
50 Years
|
Trade Terms:
|
EXW,FOB,FCA,CFR,CIF,DAP Etc
|
|
Product Name:
|
Steel Communication Towers
|
|
Type:
|
Angular Steel Tower
|
|
Material:
|
A36 / S235JR/ CT3nC、A 572 Gr.50 / S355JR/ 09[ 2C、 A572 Gr.65 / S420N/ 15F2CΦ Or According To The Standards Provided By The Customer
|
|
Payment Terms:
|
TT Or L/C
|
|
Delivery Time:
|
As Agreed Upon
|
|
Galvanization Standard:
|
EN ISO 1461,ASTM/A123 Or Equivalent
|
|
Lifetime:
|
50 Years
|
|
Trade Terms:
|
EXW,FOB,FCA,CFR,CIF,DAP Etc
|

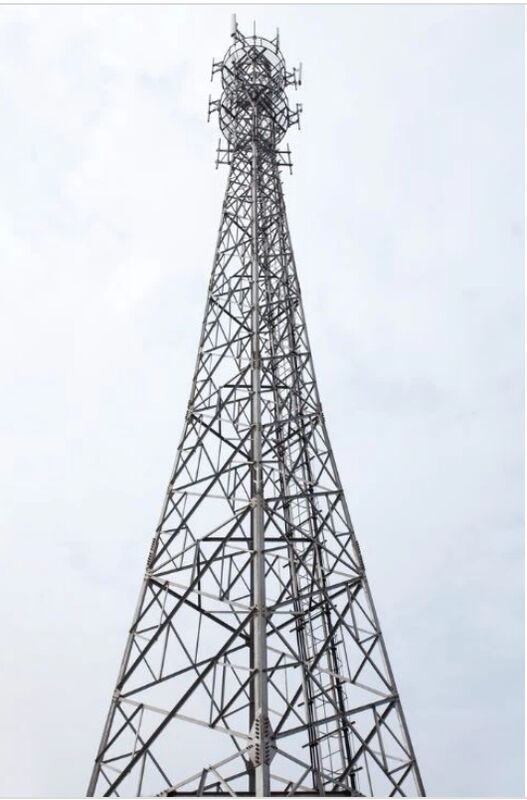

Wind-Resistant Angular Steel Tower with Space-Saving Design for Easy Installation
The angular steel tower uses high-quality steel as the main body material of the tower, which has the characteristics of good structural rigidity and small deformation; The angle steel is spliced and connected;The components are light in weight and the tower can be transported and installed manually, so the cost is low.
Our strict quality control system and strong technical reserves have created world-class angular steel tower. And we have a mature drawing team so you can choose with confidence.
| Height | 30M 35M 45M 60M 76M |
| Wind Pressure | 0-300 KM/H |
| Structure | Overlap Connection, bolt connection |
| Material |
Q345B/A572, minimum yield strength >=345MPA; Q235B/A36, minimum yield strength>=235MPA Or according to the standards provided by the customer |
| Details & Shape | Can be designed as per customer's requirement |
| Good's Description | Cable and Ladder can be assembled by customer's request |
| Lifetime | 50 years |
| Main Pole Lifetime | More than 50 years |
| Barks | Hot Dip Galvanization or Painted |
| Delivery Time | According to customer requirements |
| Galvanizing Standard | EN ISO 1461,ASTM/A123 or equivalent |
| Working & Resting Platform Quantity | 1-3 PCS |
| Antenna Support | 3-18 PCS |
| Microwave Dish | 3-18 PCS |
| Manufacturing and Workmanship | BS449 or AISC or equivalent |
| Welding Standard | AWS D1.1, AS554, AS 4100 standard or equivalent |
| Nuts& Bolts | Grade 8.8 |
| Spare parts | All Necessary parts, e.g. Antenna Mount pole and Brackets , Climbing Steps, Safety Guide Cable, Lightning Rod, Mounting bracket for Obstruction light, Holding down bolts/nuts, and all other bolt and nuts required for erection and installation |
