Product Details
Place of Origin: China
Brand Name: Qingdao Zaili Electric Power Equipment Co., Ltd.
Certification: CE,ISO
Model Number: Substation Steel Structures
Payment & Shipping Terms
Minimum Order Quantity: 1ton
Price: Need to inquiry
Packaging Details: Wooden case,Wooden crate,Bundle
Delivery Time: As agreed upon
Payment Terms: TT or L/C
Supply Ability: 100,000 tons per year
|
Product Name:
|
Substation Steel Structure
|
Type:
|
Angular Tower Or Steel Pole Tower
|
Material:
|
A36 / S235JR/ CT3nC、A 572 Gr.50 / S355JR/ 09[ 2C、 A572 Gr.65 / S420N/ 15F2CΦ Or According To The Standards Provided By The Customer
|
Payment Terms:
|
TT Or L/C
|
Delivery Time:
|
As Agreed Upon
|
Galvanization Standard:
|
EN ISO 1461,ASTM/A123 Or Equivalent
|
Lifetime:
|
50 Years
|
Trade Terms:
|
EXW,FOB,FCA,CFR,CIF,DAP Etc
|
|
Product Name:
|
Substation Steel Structure
|
|
Type:
|
Angular Tower Or Steel Pole Tower
|
|
Material:
|
A36 / S235JR/ CT3nC、A 572 Gr.50 / S355JR/ 09[ 2C、 A572 Gr.65 / S420N/ 15F2CΦ Or According To The Standards Provided By The Customer
|
|
Payment Terms:
|
TT Or L/C
|
|
Delivery Time:
|
As Agreed Upon
|
|
Galvanization Standard:
|
EN ISO 1461,ASTM/A123 Or Equivalent
|
|
Lifetime:
|
50 Years
|
|
Trade Terms:
|
EXW,FOB,FCA,CFR,CIF,DAP Etc
|
Customizable Hot-Dip Galvanized Substation Steel Structure with High Strength and Rigidity
We don't make "generic" models, only "customized" ones. Every customized substation is tailored to your specific needs, providing a comprehensive solution for all scenarios.

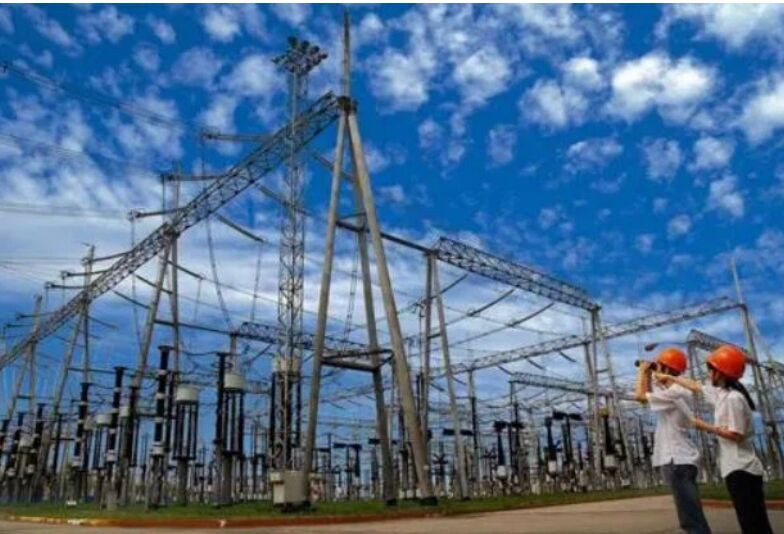

Customized Substation Steel Structure is a steel structure system designed for substations to support and protect substation equipment such as transformers, circuit breakers and switchgear. These structures are made of hot-dip galvanized steel to improve corrosion resistance and extend service life. According to the specific needs of customers, the size, shape and load-bearing capacity of product can be adjusted to meet different engineering requirements.
| No. | Comparison Dimensions | Steel Substation Frame | Concrete Substation Frame |
|---|---|---|---|
| 1 | Structural Performance | High strength, high rigidity, strong disaster resistance | sufficient rigidity but poor toughness, weak earthquake/typhoon resistance |
| 2 | Construction Cycle | Short (1/3-1/2) | Long (requires on-site pouring and curing) |
| 3 | Foundation Cost | Low (lightweight, low foundation requirements) | High (heavy weight, requires heavy foundation) |
| 4 | Flexibility | Customizable, expandable, and transportable | Fixed form, cannot be modified, difficult to transport |
| 5 | Maintenance Cost | Low (good corrosion resistance) | High (prone to cracking and rusting, requires frequent repairs) |
| 6 | Environmental Protection | Recyclable, low emissions | high construction waste, high carbon emissions |
| Product name | Substation Steel Structure | anti-seismic | magnitude eight |
| Application | Substation stringing support and pillar | materials | Steel pipe, round steel, steel plate, angle steel |
| Design wind speed | 10M/S-34M/S | Icebound | No ice,10MM,15MM |
| height | Can be adjusted | Suitable temperature | -25°C~+45°C |
| Anti corrosion treatment | Hot galvanizing | Durable time | fifty years |
