Product Details
Place of Origin: China
Brand Name: Qingdao Zaili Electric Power Equipment Co., Ltd.
Certification: CE,ISO
Model Number: Transmission Line Tower
Payment & Shipping Terms
Minimum Order Quantity: 1ton
Price: Need to inquiry
Packaging Details: Wooden case,Wooden crate,Bundle
Delivery Time: As agreed upon
Payment Terms: TT or L/C
Supply Ability: 100,000 tons per year
|
Product Name:
|
Transmission Line Tower
|
Type:
|
Angular Tower
|
Material:
|
A36 / S235JR / Ст3пс、A572 Gr.50 / S355JR / 09Г2С、A572 Gr.65 / S420N / 15Г2СФ Or According To The Standards Provided By The Customer
|
Payment Terms:
|
TT Or L/C
|
Delivery Time:
|
As Agreed Upon
|
Galvanization Standard:
|
EN ISO 1461,ASTM/A123 Or Equivalent
|
Lifetime:
|
50 Years
|
Trade Terms:
|
EXW,FOB,FCA,CFR,CIF,DAP Etc.
|
|
Product Name:
|
Transmission Line Tower
|
|
Type:
|
Angular Tower
|
|
Material:
|
A36 / S235JR / Ст3пс、A572 Gr.50 / S355JR / 09Г2С、A572 Gr.65 / S420N / 15Г2СФ Or According To The Standards Provided By The Customer
|
|
Payment Terms:
|
TT Or L/C
|
|
Delivery Time:
|
As Agreed Upon
|
|
Galvanization Standard:
|
EN ISO 1461,ASTM/A123 Or Equivalent
|
|
Lifetime:
|
50 Years
|
|
Trade Terms:
|
EXW,FOB,FCA,CFR,CIF,DAP Etc.
|

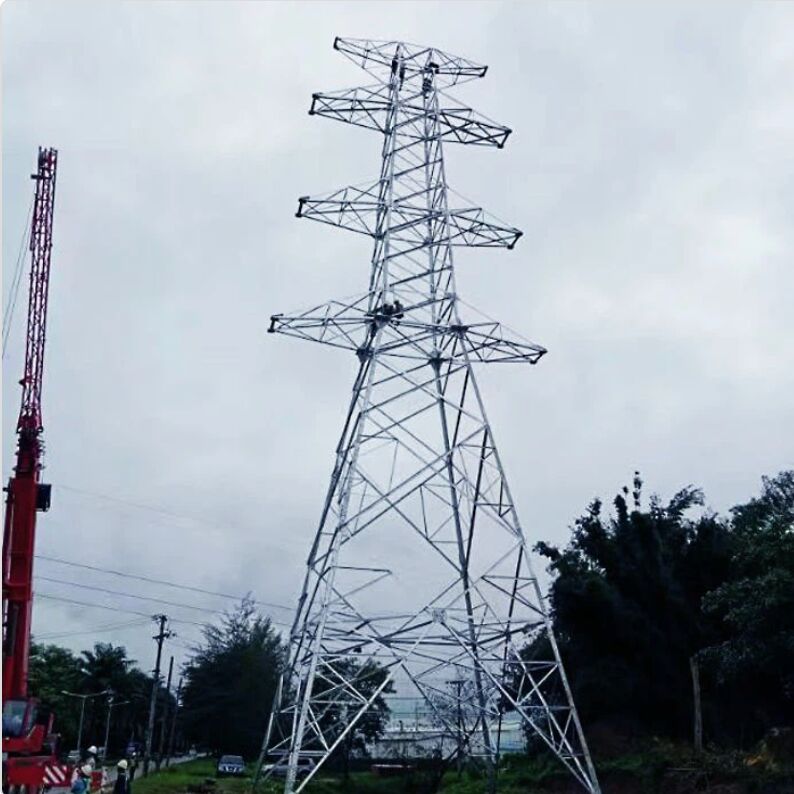

Transmission Line Tower fabricated to ensure support of overhead electric power transmission lines across diverse geographic locations
Electric Transmission Tower is a tall structure, usually a steel lattice tower used to support an overhead power line. We conduct detailed line surveys, line diagrams, tower locations, diagram structures and technical documentation before supplying these products. There are many kinds of tranmission line tower, like angular tower, monopole, 3-legged tower, 4-legged tower.
monopole towers, from bending, jointing, arc, shaping and welding, gal, packaging.
The quality of hot-dip galvanizing is also one of our advantages. Our team has rich experience in HDG process and is particularly good at handling towers in high corrosion areas.
|
Height |
According to customer needs |
|
Voltage Class |
10-1000kV |
|
Tower Type |
Self-suspension |
|
Structure |
Overlap Connection, bolt connection, |
|
Material |
Q345B/A572, minimum yield strength >=345MPA; Q235B/A36, minimum yield strength>=235MPA Or according to the standards provided by the customer |
|
Details & Shape |
Can be designed as per customer's requirement |
|
Earthquake resistance |
Grade 8 |
|
Ice wrapping |
5-10 mm |
|
Verticality |
1 / 1000 |
|
Barks |
Hot Dip Galvanization or Painted |
|
Delivery Time |
According to customer requirements |
|
Galvanizing Standard |
EN ISO 1461,ASTM/A123 or equivalent |
|
Suitable temperature |
- 45°C -+ 45°C |
|
Service life |
50Years |
|
Manufacturing and Workmanship |
BS449 or AISC or equivalent |
|
Welding Standard |
AWS D1.1, AS554, AS 4100 standard or equivalent |
|
Nuts& Bolts |
Grade 8.8 |
|
Spare parts |
Provide additional tower and bolt spare parts according to order value |
In addition, if the customer does not have drawings, we can still provide a large number of design tower types and design services.
We'd like to give you support for your requirements in the projects.
