Qingdao Zaili Electric Power Equipment Co., Ltd
jack@qdzaili.com
86--18153205650
Product Details
Place of Origin: China
Brand Name: Qingdao Zaili Electric Power Equipment Co., Ltd.
Certification: CE,ISO
Model Number: Steel Structure Building
Payment & Shipping Terms
Minimum Order Quantity: 1ton
Price: Need to inquiry
Packaging Details: Wooden case,Wooden crate,Bundle
Delivery Time: As agreed upon
Payment Terms: TT or L/C
Supply Ability: 100,000 tons per year
|
Product Name:
|
Steel Structure Building
|
Material:
|
A36 / S235JR/ CT3nC、A 572 Gr.50 / S355JR/ 09[ 2C、 A572 Gr.65 / S420N/ 15F2CΦ Or According To The Standards Provided By The Customer
|
Payment Terms:
|
TT Or L/C
|
Delivery Time:
|
As Agreed Upon
|
Galvanization Standard:
|
EN ISO 1461,ASTM/A123 Or Equivalent
|
Lifetime:
|
50 Years
|
Trade Terms:
|
EXW,FOB,FCA,CFR,CIF,DAP Etc
|
|
Product Name:
|
Steel Structure Building
|
|
Material:
|
A36 / S235JR/ CT3nC、A 572 Gr.50 / S355JR/ 09[ 2C、 A572 Gr.65 / S420N/ 15F2CΦ Or According To The Standards Provided By The Customer
|
|
Payment Terms:
|
TT Or L/C
|
|
Delivery Time:
|
As Agreed Upon
|
|
Galvanization Standard:
|
EN ISO 1461,ASTM/A123 Or Equivalent
|
|
Lifetime:
|
50 Years
|
|
Trade Terms:
|
EXW,FOB,FCA,CFR,CIF,DAP Etc
|

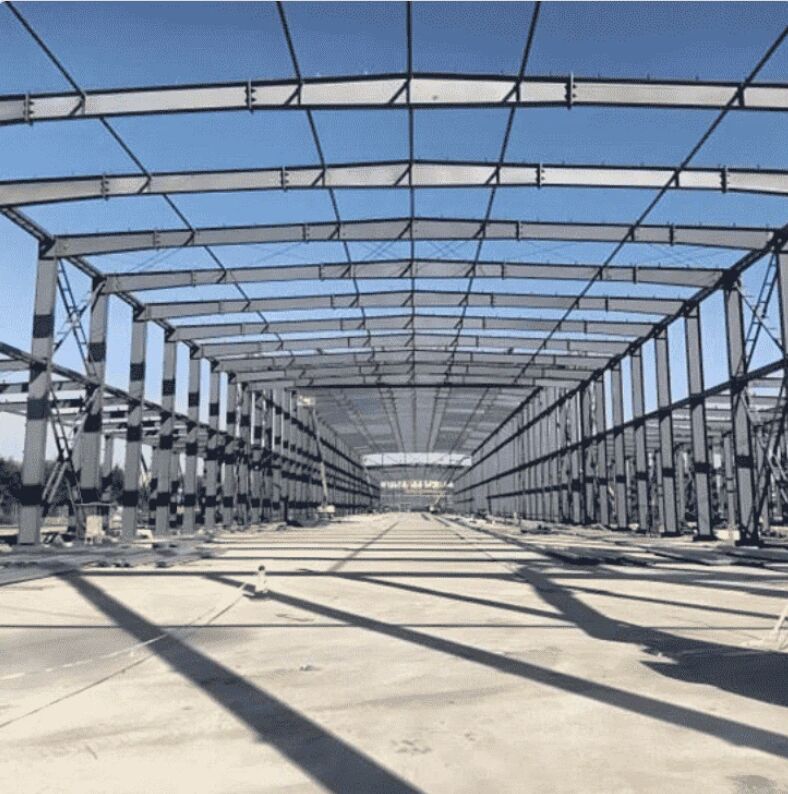

Customizable Steel Structure Warehouse with Long Service Life and Efficient Construction
A steel structure is a kind of structure composed of steel materials, which is one of the main types of building structures. The structure is mainly composed of steel beams, steel columns, steel trusses and other components made of profile steel and steel plates. Welding, bolt or rivet connections are usually adopted between components or parts.
Because of its light weight and simple construction, it is widely used in large factories, stadiums, super high-rise buildings and many other fields.
Long service life
The steel frame can withstand extreme weather such as heavy rainfall or snowstorms, and the walls and roof panels are filled with an aluminum compound that strengthens the structure and ensures the steel is less susceptible to rust.
Flexible design
The steel structure building is customized. All dimensions of length, width and height can be freely selected, and internal columns can be eliminated to expand the use space.
Efficient construction time
Prefabricated steel structure buildings do not require on-site secondary manufacturing and can quickly fix bolts.
Cost-effectiveness
Steel structure warehouse construction generally does not delay, can save labor, and the construction speed is fast, so the cost can be budgeted without changes.
Steel structures are prone to rust and therefor are generally often galvanized or coated as a rust prevention method.The most common rust prevention processes, such as water washing or drying, galvanizing, etc. are preferential protection methods to ensure longevity of the structure. All steel structure warehouse buildings are subject to be maintained regularly.
| Connection Form | Bolt Connection |
| Member | Steel Column |
| Type of Steel For Building Structure | H-Section Steel |
| Carbon Structural Steel | Q355, Q235 or equivalent standards |
| Residential Wall Structure | Corrugated Steel Sheet or Sandwich Panel |
| Application | Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Frame Part, Steel Walkway and Floor, Steel Structure Warehouse |
| Column and Beam | H Steel |
| Purlin | C Steel, Z Steel |
| Main Frame | H Steel |
| Door | Sliding Door and Roller Door |
| Transport Package | Seaworthy Package |
| Design Parameter | Size, Material, Load |
| Connection | Bolts |
| Surface Treatment | Galvanizing, Painting |
| Color | Customized |
| Surface Treatment | Galvanizing, Painting |
| Production Capacity | 20000 Tons Per Year |
Advantages:
Guaranteed On-Time Delivery: Contractual obligation fulfillment; 15-day turnaround from finalized technical specifications; Precision scheduling adherence
Certified Quality Compliance: 6-tier quality assurance protocol; Client-approved inspection standards; Multi-stage verification process
Secure Shipping Solutions: Industrial-grade protective packaging; Loss/damage prevention systems; Customized crating for optimal transit safety
Flexible Financial Options: T/T (Wire Transfer); L/C (Letter of Credit); Tailored payment structures
Responsive Client Support: 24/7 technical assistance;
